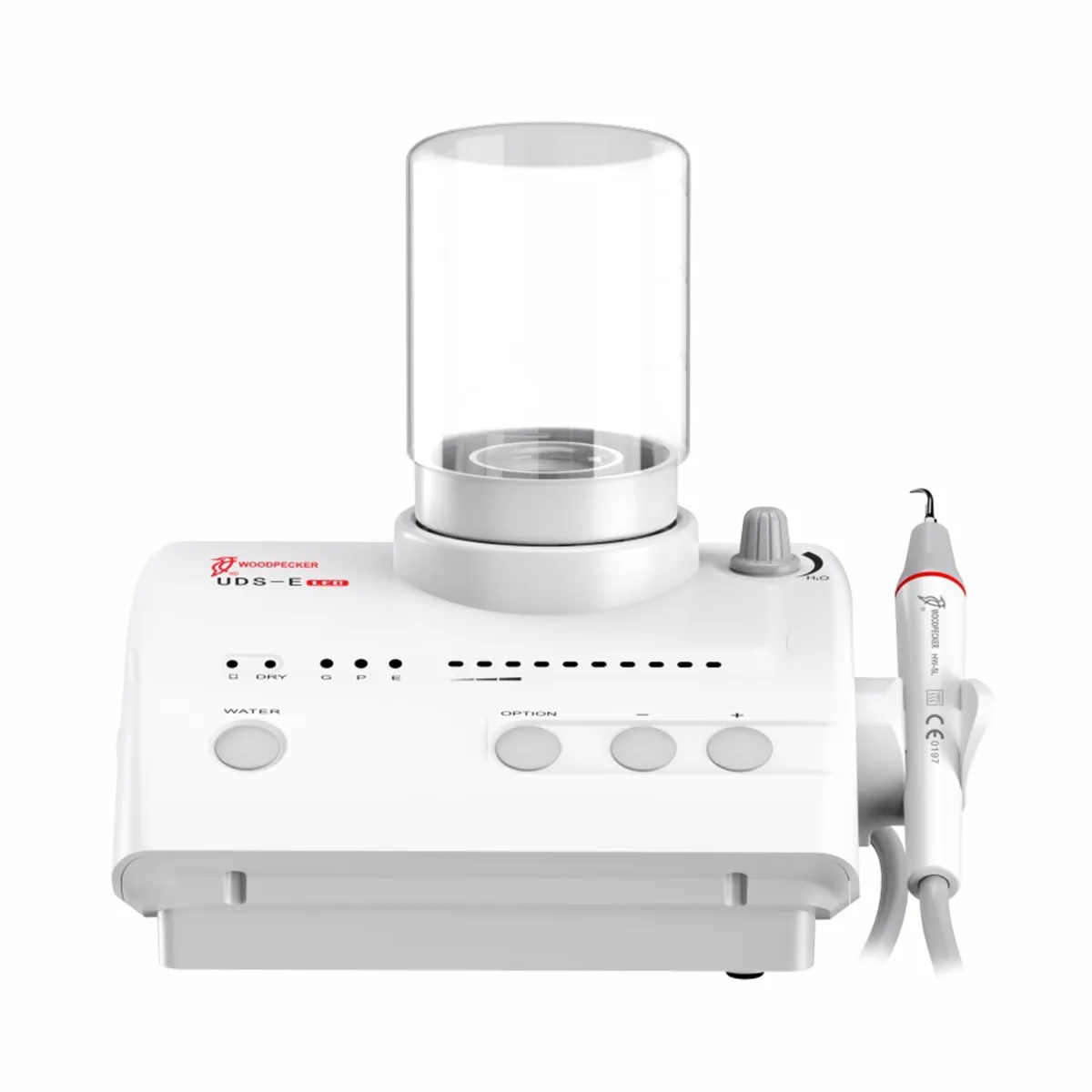

Woodpecker Uds E Led Ultrasonic Scaler (8 Tips Free)

Features: Multi-function scaler with three modes: general, perio, and endo. Automatic frequency tracking system for stable and reliable performance. Optical handpiece for easy handling and maneuverability. The inner water pipe allows the use of various clinical fluids with an auto-water supply. The detachable handpiece can be autoclaved for proper sterilization. Enhances perio and endo procedures. Cutting-edge design and functionality for exceptional performance.
Key Specifications: Power Supply Input: 220-240V, 50Hz/60Hz, 150mA Main Unit Input: 24V, 50Hz/60Hz, L3A Primary Tip Vibration Excursion: ≤100μm Half-Excursion Force: <2N Output Tip Vibration Frequency: 28kHz+3kHz Output Power: 3W to 20W
Packaging: 1 x Main Unit 1 x Detachable Handpiece 1 x Power Supply 1 x Foot Switch 1 x Scaling Tip G1 1 x Scaling Tip G4 1 x Scaling Tip G5 1 x Scaling Tip G6 1 x Scaling Tip P1 1 x Scaling Tip P3 1 x Scaling Tip P4D 1 x Endo Chuck E1 1 x Tip Holder 2# 1 x Torque Wrench 1 x Endo Wrench 1 x Water Bottle 500ml 1 x Water Bottle 350ml 1 x LED Lamp 1 x Instruction of LED Lamp Replacement 1 x Instruction Manual 1 x Qualified Certification 1 x Packing List O-ring Pack Handpiece Decoration Ring Waterproof O-Ring Sealed Ring
Direction to Use: Preparation: Ensure that the power supply is properly connected to the scaler unit and is receiving the recommended voltage (220-240V, 50Hz/60Hz). Connect the handpiece and the scaling tip to the scaler unit securely. Patient Preparation: Provide the patient with protective eyewear. Place a dental bib or protective covering over the patient's chest and neck to protect against any splatter. Operation: Press the power button on the scaler unit to turn it on. Adjust the power level according to the treatment requirements. Use the intensity control knob to increase or decrease the power output. Ensure that the scaling tip is properly seated and firmly held to avoid any vibration or movement during operation. Scaling Procedure: Begin the scaling procedure by gently placing the tip on the tooth surface, targeting the area to be treated. Use a moderate amount of pressure and move the tip in a controlled, sweeping motion along the tooth surface, following the contour of the teeth and gums. Pay close attention to the calculus or plaque deposits and aim to remove them effectively. Adjust the power level or select different tip options based on the patient's comfort and the nature of the deposit being treated. Rinse the treatment area frequently to remove debris and maintain visibility. Continue scaling until the desired result is achieved. Post-Scaling Care: Once the scaling procedure is complete, switch off the scaler unit. Instruct the patient to rinse their mouth thoroughly with water to remove any remaining debris. Provide appropriate post-scaling instructions for oral hygiene maintenance, such as brushing and flossing techniques.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
Warranty: Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board). Physical damage is not cover in any case Service and Warranty are handled by the manufacturer/importer directly for this product Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
