Woodpecker RVG i Sensor Size - 2 (Compatible With Windows Only)

Brochure:

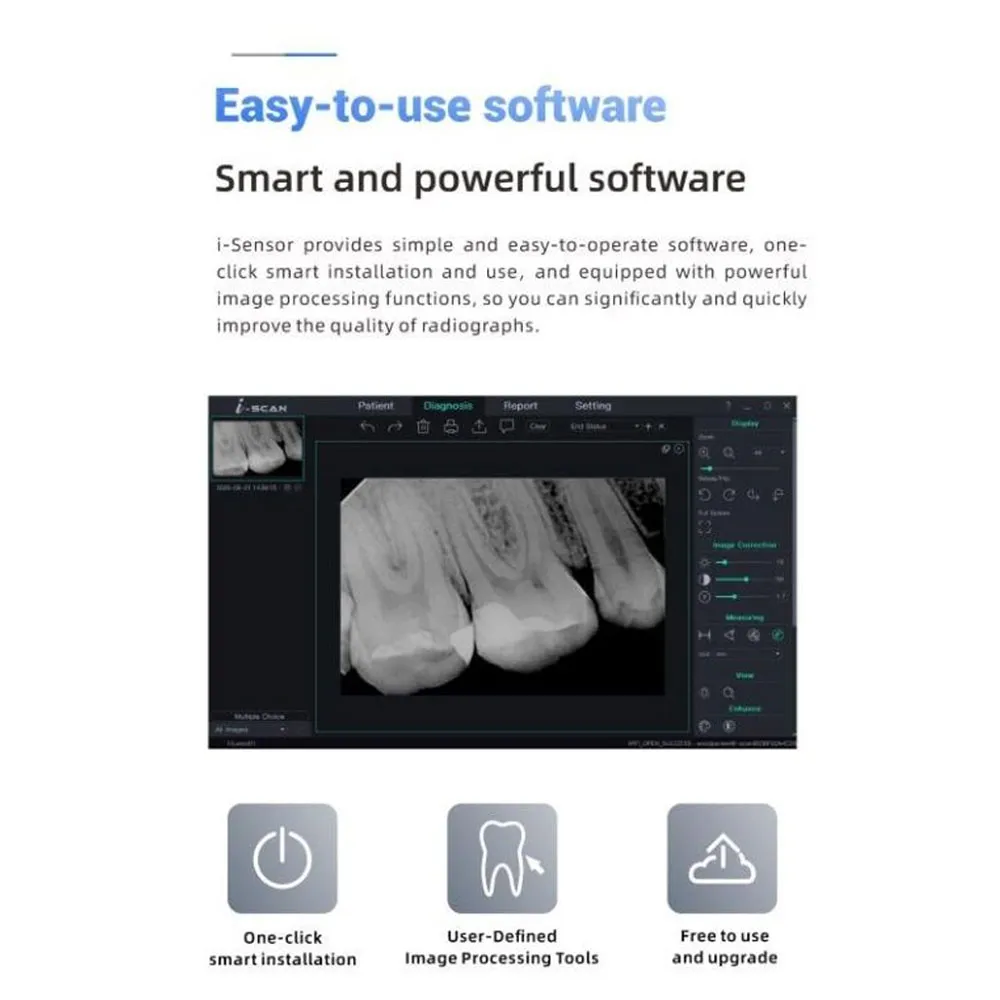

Features: High-resolution imaging - 25lp/mm theoretical resolution C Mos Technology Thinnest sensor 4.4mm USB Cable - 2.7m long Durable and reliable: 80000+ bending test & IP68 protection rating Smart and powerful software Curved Edges to Avoid Patient Injury Highly Flexible Cable It has a Twain option. and the server function. Now there is no limit for computers connected to the software license. I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
Key Specifications: Power adapter input: 5V/USB interface Effective area: 26*36mm(H2) Pixel matrix size: 1300*1800mm(H2) Pixel size: 20μm Effective resolution ＞ 8lp/mm Specifications: 40.0*31.0*4.4mm(H2) Weight: 158g(H2) Detector Technology: APS CMOS Environment temperature: 5℃～ 40℃ Relative humidity: 30% ～ 75% 1.9.3 Atmospheric pressure：70kPa ～ 106kPa
Packaging: 1 x Rvg i Sensor 1 x Disposable protective bag 1 x Sensor fixer 1 x Sensor silicone sleeve 1 x Anti-counterfeiting query label 1 x U disk 2 x Fixing screw 2 x Rubber Stopper 1 x Qualified certificate 1 x Warranty card 1 x Instruction manual
Direction to Use: How to Installation: Connect the Sensor: Plug the USB cable of the Woodpecker RVG i Sensor into an available USB port on your Windows computer. Power On the Sensor: Ensure the power adapter is connected if required. Power on the sensor according to the manufacturer's instructions. Driver Installation: Windows should automatically detect the new hardware and attempt to install the necessary drivers. Follow any on-screen prompts to complete the driver installation. Alternatively, use the drivers provided by Woodpecker, if any, for a manual installation. Download Software: Visit the official Woodpecker website to download the latest version of the RVG I Sensor software compatible with Windows. To Download The Software Please Follow The Link: https://Teethment-media.s3.ap-south-1.amazonaws.com/Ai-Dental-woodpecker-V1.0.6-setup.exe Install Software: Run the software installer. Follow the on-screen instructions to complete the installation process. Ensure that the software is compatible with your Windows version. Configure Software: Launch the software after installation. Configure any necessary settings, such as image storage locations, patient information, and imaging preferences. How to Use: Calibrate the Sensor: Before first use, follow the calibration procedure provided by Woodpecker to ensure accurate imaging. Position the Sensor: Position the sensor in the patient's mouth as required for the specific dental imaging procedure. Capture Images: Use the Woodpecker software to capture intraoral digital radiographs. Follow on-screen instructions for capturing images, adjusting settings, and ensuring proper exposure. Save and Manage Images: Save the captured images to the designated storage location. Utilize the software's management features to organize patient files and images. Specialized Applications: Depending on your dental specialty, use the sensor for endodontics, prosthodontics, orthodontics, oral surgery, implantology, or periodontics as needed.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
Warranty: Manufacturer/Importer warranty for Woodpecker RVG i Sensor 5 year and as applicable for this product. Service and Warranty are handled by the manufacturer/importer directly for this product Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be. Please click here to know about our return policy & how warranty is covered at Teethment
