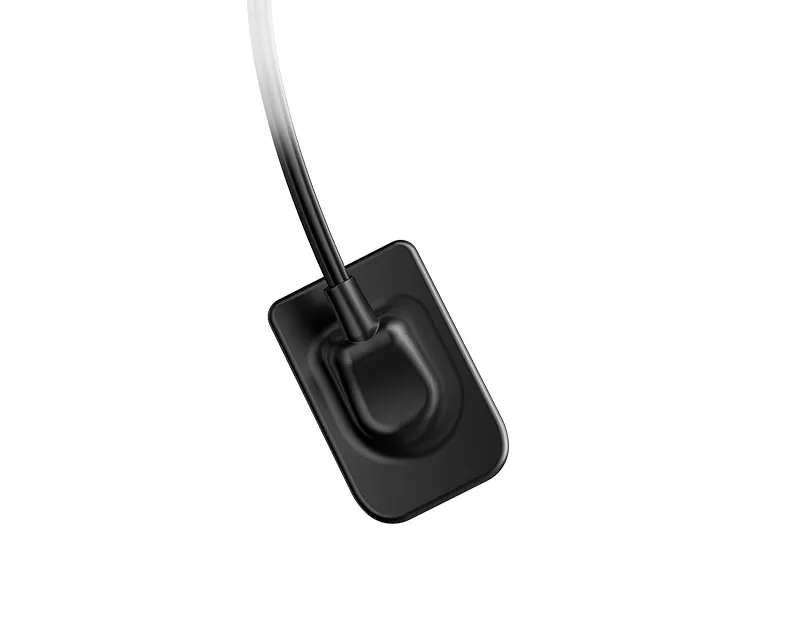

Woodpecker RVG i Sensor Size - 1 (Compatible With Windows only)

Brochure:
Features: High-resolution imaging - 25lp/mm theoretical resolution C Mos Technology Thinnest sensor 4.4mm USB cable - 2.7m Durable and reliable: 80000+ bending test & IP68 protection rating Smart and powerful software Curved Edges to Avoid Patient Injury Highly Flexible Cable It has a Twain option. and the server function. Now there is no limit for computers connected to the software license. I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
Key Specifications: Power adapter unit: 5V/USB interface Effective area: 20*30mm(H1) Pixel matrix size: 1000*1500(H1) Pixel size: 20μm Effective resolution: >8lp/mm Specifications: 38.5*25*4.4mm(H1) Weight: 118g(H1) Detector Technology: APS CMOS True Resolution: 20lp/mm Environment temperature: 5℃～ 40℃ Relative humidity: 30% ～ 75% 1.9.3 Atmospheric pressure：70kPa ～ 106kPa
Packaging: 1 x Rvg i Sensor 1 x Disposable protective bag 1 x Sensor fixer 1 x Sensor silicone sleeve 1 x Anti-counterfeiting query label 1 x U disk 2 x Fixing screw 2 x Rubber Stopper 1 x Qualified certificate 1 x Warranty card 1 x Instruction manual Download The Software Please Follow The Link: https://Teethment-media.s3.ap-south-1.amazonaws.com/PDF/Ai-Dental-woodpecker-V1.0.26.5-setup+(1).exe
Direction to Use: Installation: Check System Requirements: Ensure that your computer meets the system requirements specified by the manufacturer. Typically, these include the Windows operating system and specific hardware specifications. Software Installation: Insert the installation USB or download the latest software from the official Woodpecker website. Download The Software Please Follow The Link: https://Teethment-media.s3.ap-south-1.amazonaws.com/PDF/Ai-Dental-woodpecker-V1.0.26.5-setup+(1).exe Follow the on-screen instructions to install the imaging software on your Windows computer. Connect the Sensor: Connect the Woodpecker RVG I Sensor Size - 1 to your computer using the provided USB cable. Power On the Sensor: Connect the power adapter unit to the sensor and ensure it's powered on. Driver Installation: The Windows operating system should automatically detect the sensor. If not, you may need to install drivers provided by Woodpecker. Calibration (if required): Follow any calibration procedures specified in the user manual or software instructions. How to Use: Open Imaging Software: Launch the imaging software on your computer. Patient Information: Enter or select patient information within the software. Position the Sensor: Place the Woodpecker RVG i Sensor Size - 1 intraorally in the desired position. Capture Images: Follow the on-screen instructions to capture intraoral digital radiographs. This typically involves triggering the X-ray exposure while the sensor is in the patient's mouth. Image Review: Review the captured images immediately within the software. You can zoom in, adjust contrast, and perform other image enhancements. Save and Store Images: Save the images to the patient's file or the central image repository. The software may provide options for organizing and managing patient data. Export or Print (if necessary): Export images for referral or consultation purposes. Some systems also allow you to print hard copies if needed. Maintenance: Follow any recommended maintenance procedures for the sensor to ensure its longevity and optimal performance.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
Warranty: Manufacturer/Importer warranty for Woodpecker RVG i Sensor 5 year and as applicable for this product. Service and Warranty are handled by the manufacturer/importer directly for this product Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be. Please click here to know about our return policy & how warranty is covered at Teethment
