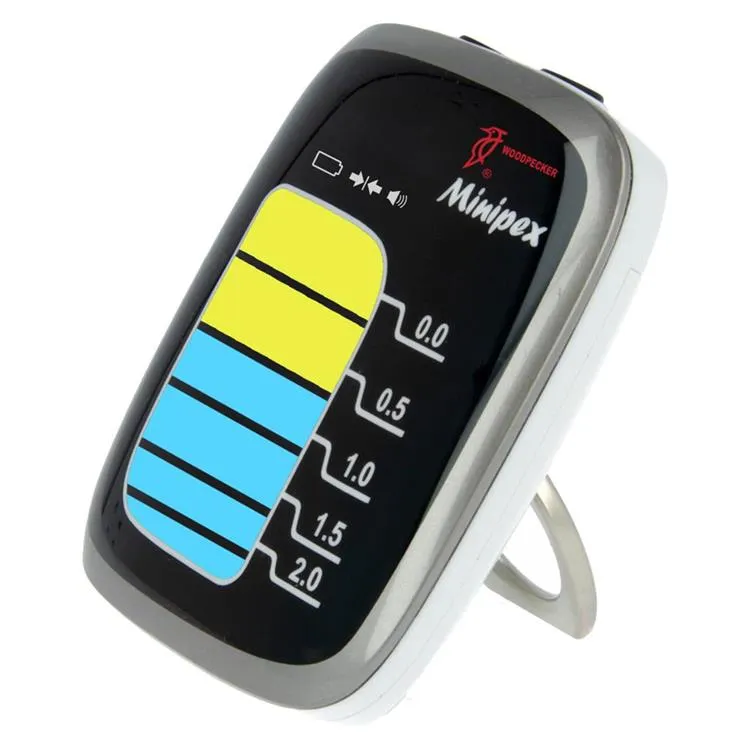

Woodpecker Minipex Apex locator

Features: Small and light but powerful 100% automatic digital calibration, with no decrease in measurement accuracy Light body together with stable performance Clinical data Fitting Measurement accuracy up to 97.71% Update chip, real-time response, double sensibility Innovation algorithm, intelligent anti-interference 2.4" LCD Screen Clear interface, see only at a glance Various colors, segment display the trace of touch probe in root canal Soft color, Light distribution with no glare, comfortable vision Surface design IMD mold injection shell, avoiding scratch, resistant to wipe Multi frequency-independent network measuring technique The alarm rings when the distance between the root canal needle and the root canal is less than 2 mm
Key Specifications: Weight: 71g Dimension: 70mm X 62mm X 20mm Battery: 3.7V/mAh Power consumption:≤ 0.5W Adapter: ~100V-240V 50Hz/60Hz Consumption power: ≤0.5W Screen: Segment digital tube Environment temperature: +5℃～+40℃ Relative humidity: 30% ～75% Atmosphere pressure: 70kPa～106kPa
Packaging: 1 Unit Minipex Apex Locator 2 x File clips 1 x Lip hooks 2 x Touch probe 1 x Adapter 1 x Stand Holder Instruction Manual
Direction to Use: Prepare the tooth: Begin by performing the initial root canal preparation according to standard protocols. Ensure that the tooth is isolated and dry. Power on the Apex Locator: Turn on the device using the designated power button or switch. Ensure that the battery is adequately charged or connected to a power source. Select the correct file clip: Choose the appropriate file clip that matches the file size you will be using during the measurement. Attach the file securely to the clip. Attach the file clip: Connect the file clip to the Apex Locator device using the designated port. Ensure a tight and secure connection to avoid any interference during measurements. Insert the file into the root canal: Gently insert the file into the prepared root canal, making sure it reaches the working length. Take care not to force the file, as it may cause damage or inaccurate measurements. Observe the LCD screen: Look at the 2.4" LCD screen to view the measurement results. The screen will display the length of the file in the root canal. Follow the color indicators: Pay attention to the various colors and segment displays on the screen. They indicate the trajectory of the file within the root canal, helping you navigate the canal accurately. Monitor the alarm function: Stay alert to the alarm feature of the Apex Locator. If the distance between the root canal needle and the root canal becomes less than 2 mm, the alarm will ring, indicating potential risks. Take appropriate precautions in such situations. Complete the measurement: Once you have obtained the desired measurements and confirmed the file's position, carefully remove it from the root canal. Evaluate and record the results: Compare the measurements obtained from the Apex Locator with other diagnostic tools, such as X-ray images, for confirmation. Record the accurate measurement for future reference and treatment planning.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
Warranty: Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board) Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR ) Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
