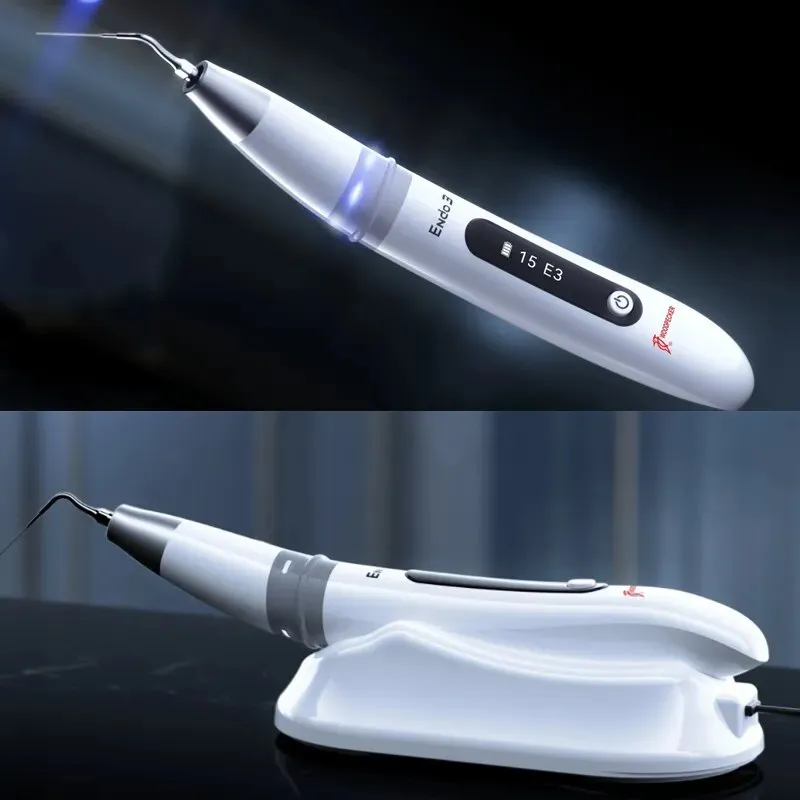

Woodpecker Endo 3 Ultrasonic Endo Activator

Features: Wireless and Ergonomic Design: The Endo 3 Ultrasonic Endo Activator is a wireless handpiece that provides ergonomic comfort and ease of use during root canal procedures. High-Frequency Ultrasonic Vibration: It emits high-frequency ultrasonic vibrations to effectively activate irrigation in the root canal, aiding in debridement and disinfection. Three Power Modes: The device offers three power modes (E1, E2, and E3) with adjustable power levels, allowing dentists to select the appropriate power setting for each treatment. Four Time Modes: The Endo 3 provides four customizable time modes, enabling dentists to set the duration of ultrasonic activation according to the specific requirements of the procedure. Larger LCD Screen: It features a larger LCD screen for clear and easy viewing, facilitating convenient monitoring of device settings during treatment. Adjustable Head: The handpiece has an adjustable head that can be rotated to the desired position, enhancing access and maneuverability in the oral cavity. Multi-Mode Setting: The handpiece comes with ring switch button & smart microcomputer control.
Key Specifications: Tips Specifications : E71 - Smooth tip , 30#, 4.2 %taper, 18mm E72 - Smooth tip , 30#, 3.6 %taper, 21mm E73 - Smooth tip , 25#, 3.1 %taper, 18mm E74 - Smooth tip , 25#, 3.3 %taper, 21mm Technical Parameters : Dimensions : 173.8mmx25.8mmx35.8mm Net Weight : 78gm Rechargeable Lithium Battery : Battery mode: 14500 Nominal voltage: 3.6V Capacity: 750mAh Power Adaptor : Input: 100V-240V 50Hz/60Hz 0.4A MAX Output: DC 5V/1A Build-in fuse: T1AL 250V Working Parameters : Output tip vibration frequency : 40KHz±10KHz Relative Humidity at 30% - 75% Atmospheric Pressure : 70kPa - 106kPa
Packaging: 1 x Main Unit 1 x Power Adaptor 1 x Pedestal Charger 2 x Scaling Tip E96 2 x Scaling Tip E99 1 x Scaling Tip E70 10 x Scaling Tip E71 3 x Silicone Sleeves 1 x Torque Wrench 1 x Disposable Isolation Sleeve 1 x Instruction Manual 1 x Qualified Certification 1 x Packing List
Direction to Use: Prepare the Device: Ensure that the Endo 3 is fully charged and the handpiece is properly connected to the base unit. Select the Power Mode: Choose the appropriate power mode (E1, E2, or E3) based on the treatment requirements. Start with the lowest power mode and adjust as needed. Choose the Time Mode: Select the desired time mode (10 seconds, 15 seconds, 20 seconds, or 10 minutes) to determine the duration of ultrasonic activation during the procedure. Attach the Tip: Select the autoclavable tip that suits the specific treatment needs and attach it securely to the handpiece. Position the Handpiece: Adjust the head of the handpiece to the desired position for optimal access to the root canal. Activate Irrigation: Activate the ultrasonic vibration by pressing the appropriate button or switch on the device. Gently place the activated tip into the root canal, allowing the ultrasonic vibrations to facilitate irrigation and aid in the removal of stains and debris. Monitor and Adjust: Continuously monitor the progress of the procedure and adjust the power level and time duration if necessary to achieve optimal results. Clean and Sterilize: After use, detach the tip and thoroughly clean and sterilize it according to recommended protocols. Follow proper infection control procedures for the handpiece and base unit.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
