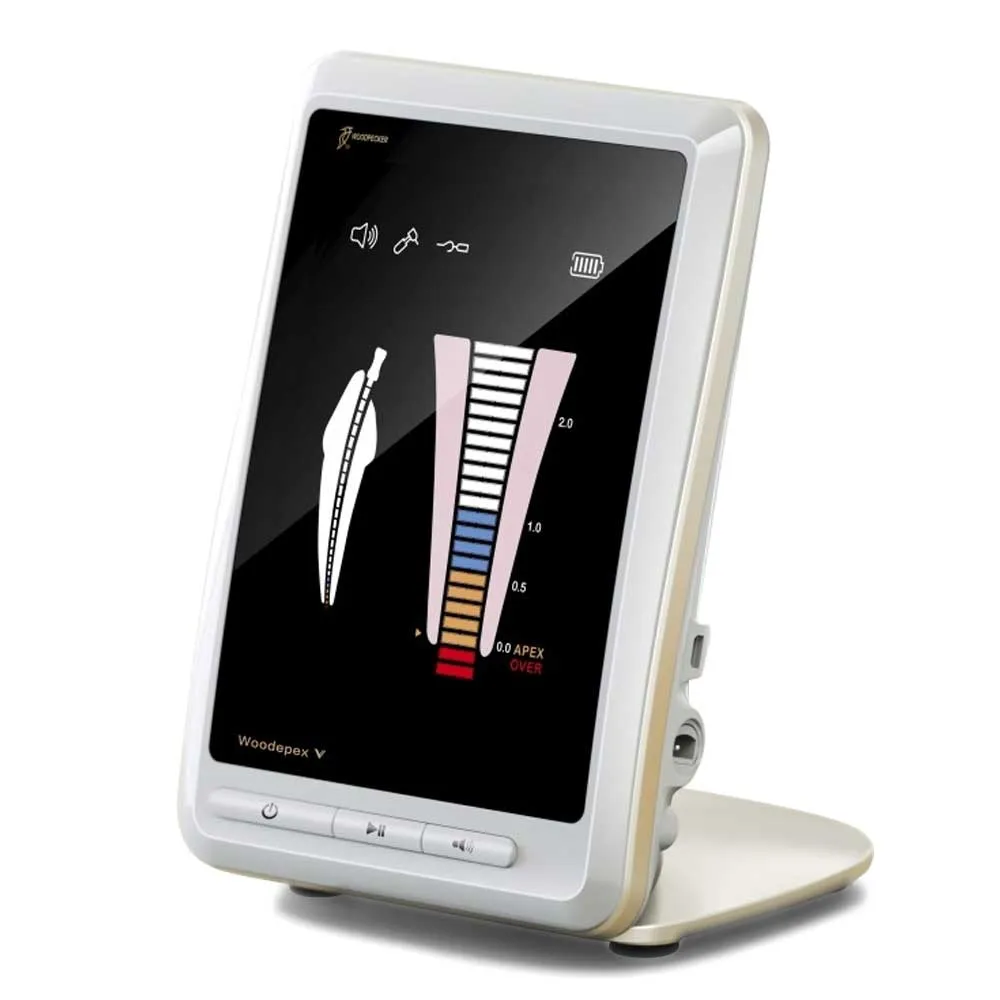

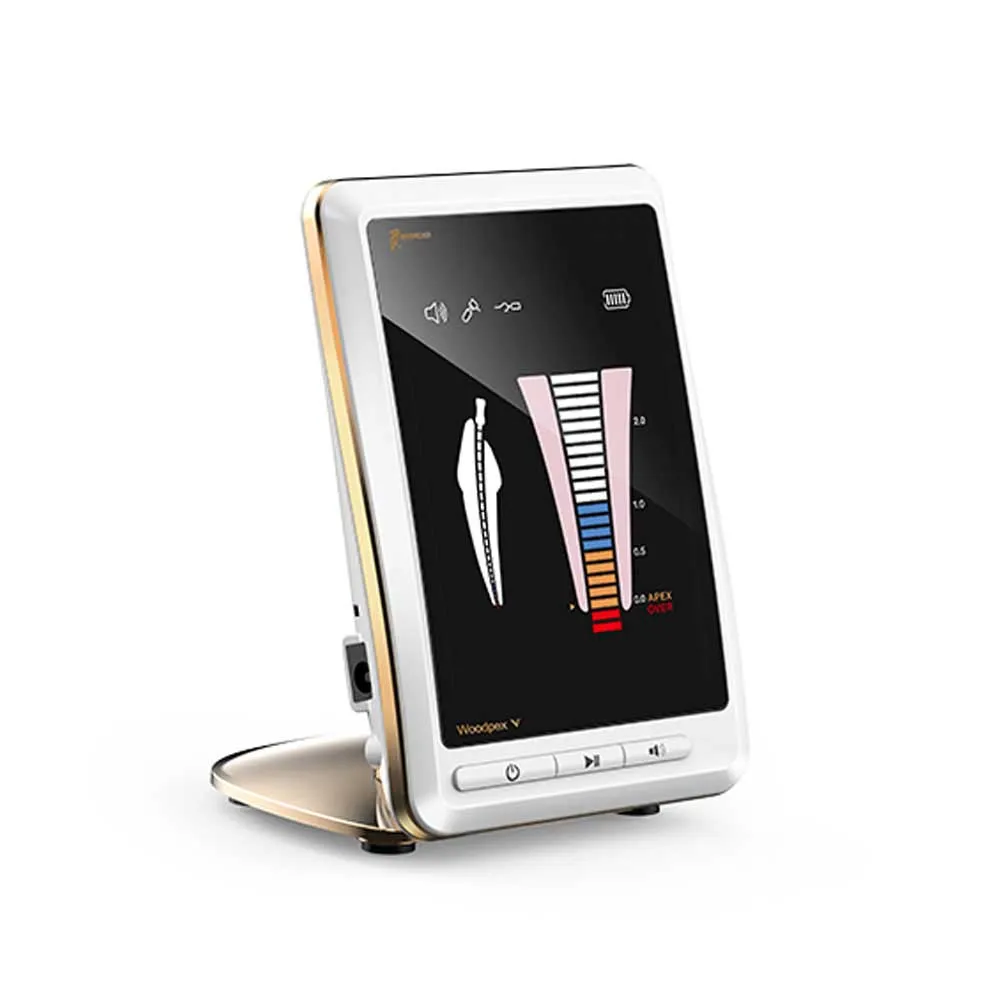

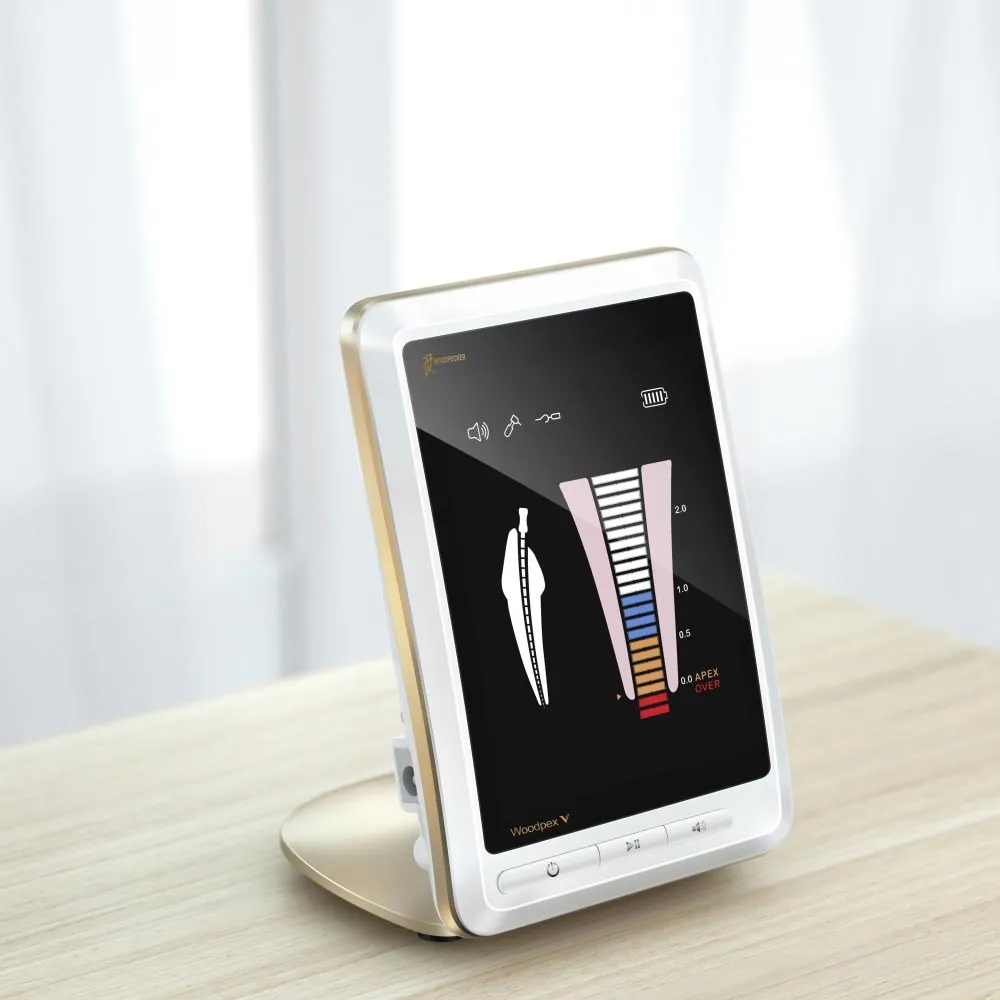

Woodpecker Apex Locator Woodpex Five

Features: Equipped with clear bright LCD, clear image and different colours indicate the trajectory of the file clearly Based on advanced multiple frequency network impedance measurement technologies and automatic calibrating ensure the measurements are accurate. The battery is rechargeable, so don't need to replace the battery repeatedly Folding, easy to adjust the visual angle Adopting the fifth generation circuit in the area of apex locator, based on the multi-frequency closed circuit human body's oral cavity Whether the root canal is dry or filled with electrolyte. blood or physiological brine will not affect the measuring result Autoclavable accessories to avoid cross infection Equipped with self-check circuit to guarantee the accuracy by adjusting the program data beforehand! Compact. stable, ergonomic design for easy handling Colored LCD screen and piezoelectric buzzer DC battery-operated Fully guaranteed for one year When measuring, the changes of the sound can indicate the position of the file in the root-canal The measurement is free from the thickness of the file High resolution. colour LCD display enables exact visualization of the file tip position Battery power is indicated on the LCD screen The contact point of root canal file is made from high-quality metal.
Key Specifications: Battery: 3.7V/750mAh Adapter: 100V - 240V 501-Iz/60Hz Power consumption: 50.5W Screen: 4.5" LCD Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex Environment temperature: +5°C to +40:C Relative humidity: 580% Atmosphere pressure: 50kPa to 106kPa Main unit net weight: 336g Main unit gross weight: 360g Unit Dimension: 195mm x 137mm x 123mm
Packaging: 1 X Main Unit 1 x Measuring Wire 2 X File Clip 2 X Lip Hook 2 X Measuring File 1 X Adapter 1 X Tester 1 X Battery 1 X Instruction Manual 1 X Qualified Certificate 1 X Warranty Card 1 X Packing List

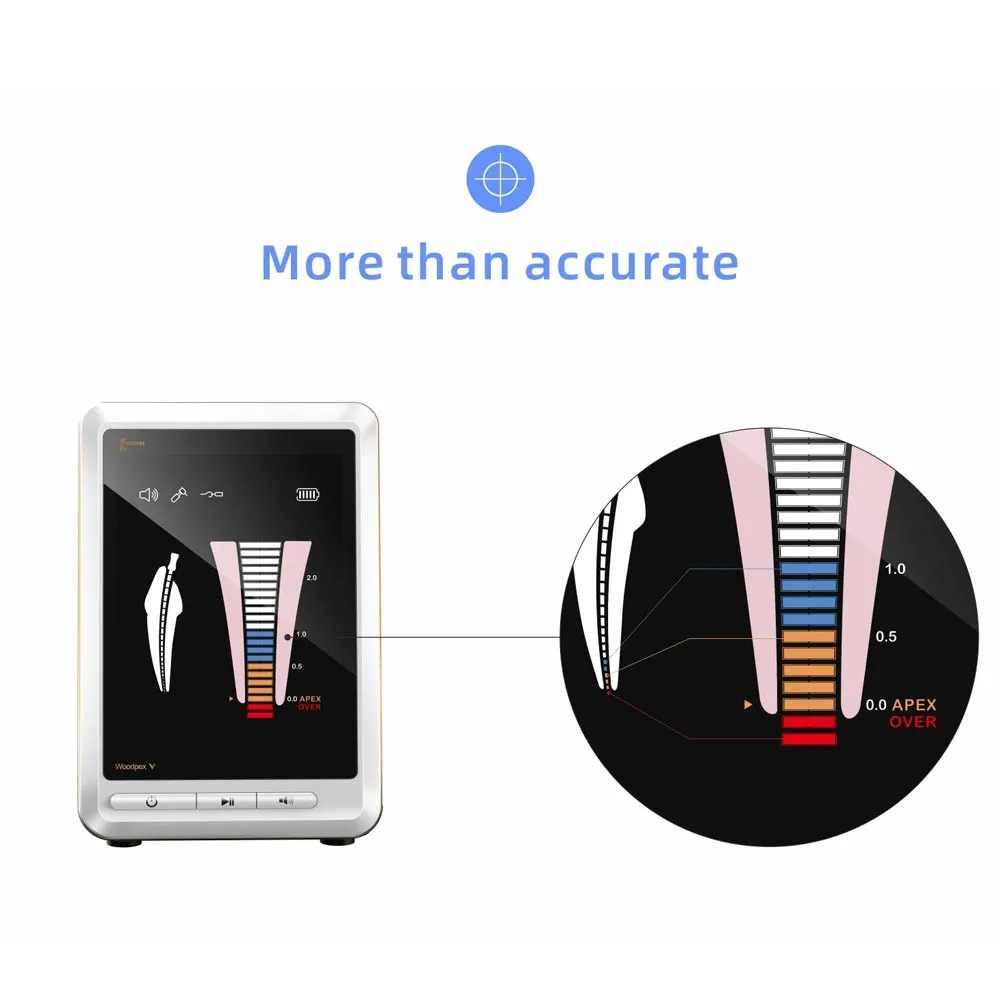

Direction to Use: Measurement Preparation: a. Insert the plug of the measuring wire into the right-side socket of the main unit. Connect the file clip and lip hook to their respective sockets on the measuring wire. Ensure a secure connection. Testing the Wire Connection: Power on the device and verify that the scene of measuring the root canal length is displayed on the LCD screen. Check if the measuring wire plug is properly inserted. Confirm that the file clip and lip hook are connected well to the measuring wire. Touch the lip hook to the bent wire of the file clip to ensure a stable connection. The connection icon on the LCD screen should be steady. Determining the Working Length: As you navigate the endo file through the root canal, observe the indicating bar on the screen. When the indicating bar reaches the position of the dial 0.0, and "APEX" is displayed, the endo file has reached the anatomical apical foramen. Subtract 0.5-1.0 mm from the measured length to determine the working length. Enlarged Display of Apical Foramen (optional): To examine the apical foramen more closely, refer to the enlarged display mode on the LCD screen. Testing the Device by Tester: To ensure proper functionality, use the provided tester every two weeks: Disconnect the measuring wire and turn off the device. Insert the tester and power on the device. Check if the indicating bar falls within ±3 bars of the dial 0.5. If not, contact the authorized distributor or manufacturer for assistance. Connecting to Compatible Endo Motor (optional): If using the Woodpex V with an Endo Motor, connect one end of the USB line to the USB socket on the device and the other end to the compatible Endo Motor. The Contra-angle icon on the screen will indicate successful communication between the devices.
Additional Info: Country of Origin: PRC Manufacturer: Woodpecker
Warranty: Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board) Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR ) Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be. Please click here to know about our return policy & how warranty is covered at Teethment
