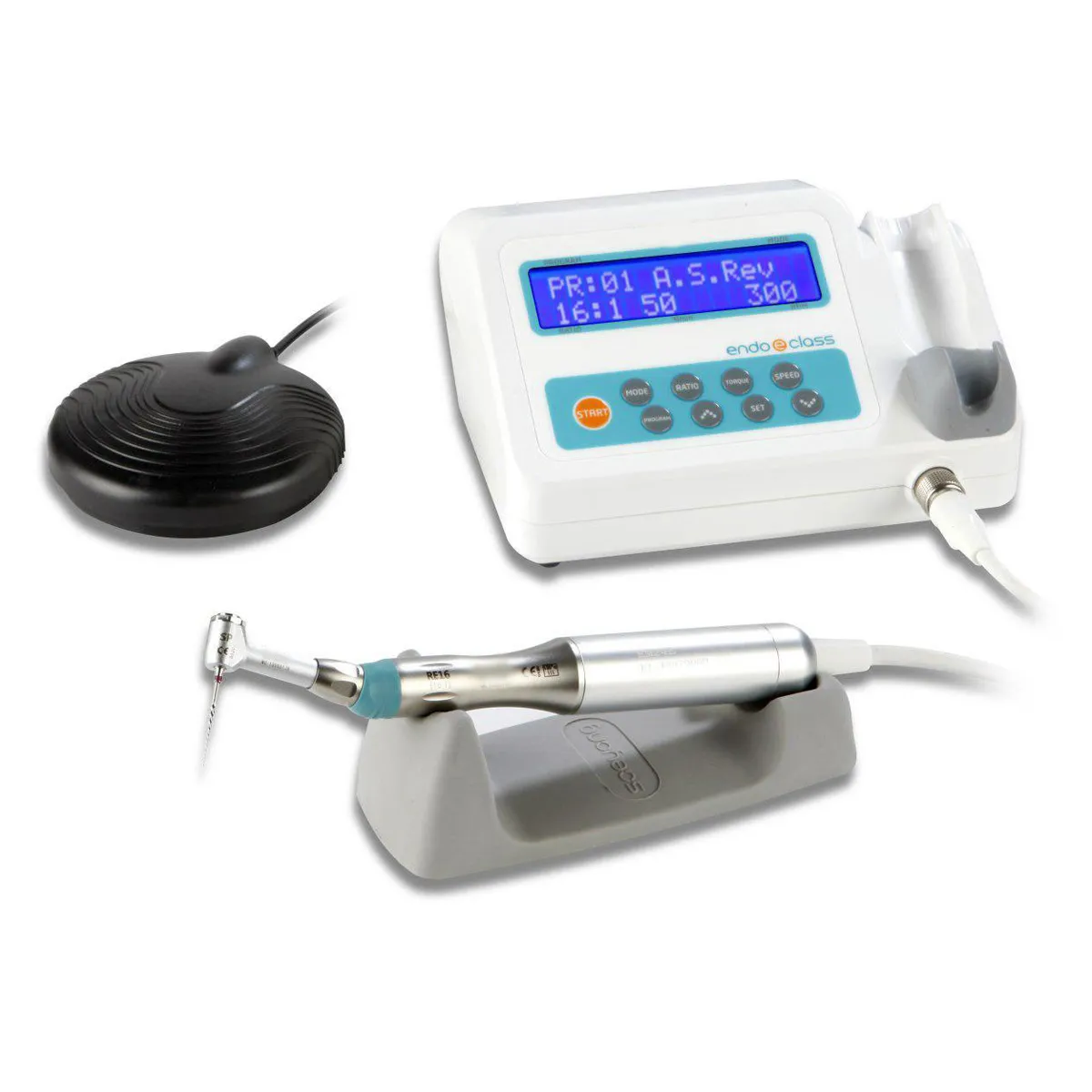

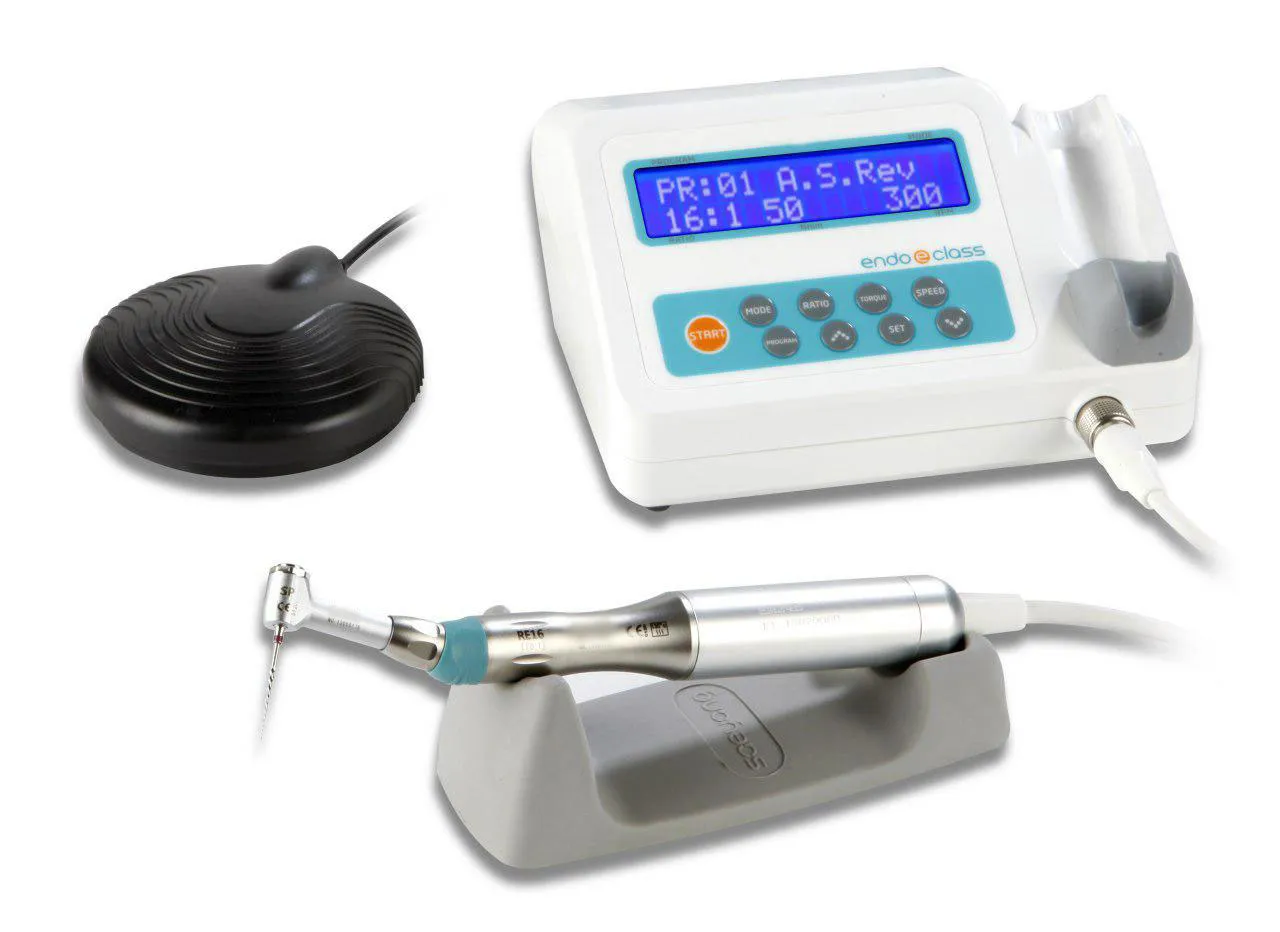

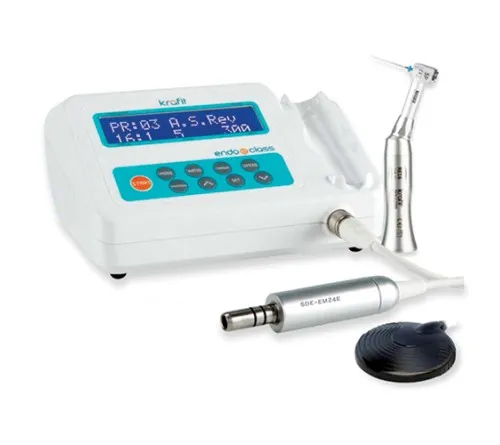

Marathon Endo E Class Endo Motor

Features: Torque controlled motor for safe opeartion Various of handpiece ratios supported 15 Free set programs Auto stop reverse/Auto stop manual/Reverse Acoustic warning at 75% of set torque value Torque range : 1-99 Nmm
Key Specifications: Specifications of Endo E Class Input power AC 220 – 240V, 50/60 Hz Power consumption 16 W Fuse 1.6 A Speed control range 80 17500 rpm Torque 1- 9.9 Ncm Weight 910 g Dimensions W175*D125*H50 mm Specifications of E type Motor Inpput voltage 24 V Rated capacity 8 W Gear Ratio 4:01 6:01 8:01 10:01 16:01 20:01 64:01:00 RPM 300-4,400 200-2900 150-2200 100-1550 70-1100 50-810 20-270 Ncm 0.2-5.7 0.2-8.5 0.3-9.9 0.4-9.9 0.5-9.9 0.6-9.9 20-9.9

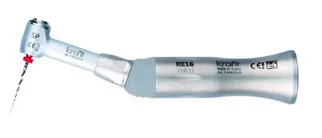

Packaging: 1 x Marathon Endo Motor E-Class 1 x Endodontic Handpiece (16:1)
Direction to Use: Handpiece Attachment: Attach the contra-angle handpiece securely to the Marathon Endo E Class Endo Motor. Follow the instructions provided with the endomotor for proper attachment. File Selection: Choose the appropriate rotary endodontic file based on the specific procedure and tooth conditions. Loading: Utilize the push-button chuck loading mechanism to load the selected rotary file into the handpiece. Ensure it is securely in place. Power On: Turn on the Marathon Endo E Class Endo Motor using the designated power switch. Speed Adjustment: Adjust the speed control to the desired RPM (rotations per minute) according to the requirements of the procedure. Torque Setting: Set the torque level as needed for the specific procedure. Ensure the torque is within the recommended range for the selected rotary file. Positioning: Position the contra-angle handpiece with the loaded file in the patient's mouth according to the treatment plan. Operate in Forward Direction: Initiate the operation in the forward direction to begin the biomechanical preparation process. Auto Stop Reverse: In case of an overload, the auto-stop reverse feature will activate. Allow the motor to automatically reverse direction until the load is resolved. Resume Forward Direction: Once the overload is resolved, the motor will automatically resume running in the forward direction. Monitor Torque and Speed: Throughout the operation, keep a close eye on both torque and speed to ensure they remain within the safe and effective range. File Removal: After completing the procedure, use the push-button chuck loading mechanism to safely remove the rotary file from the handpiece. Power Off: Turn off the Marathon Endo E Class Endo Motor once the procedure is complete.
Additional Info: Country Of Origin: Korea Manufacturer: Saeyang microtech co.LTD
