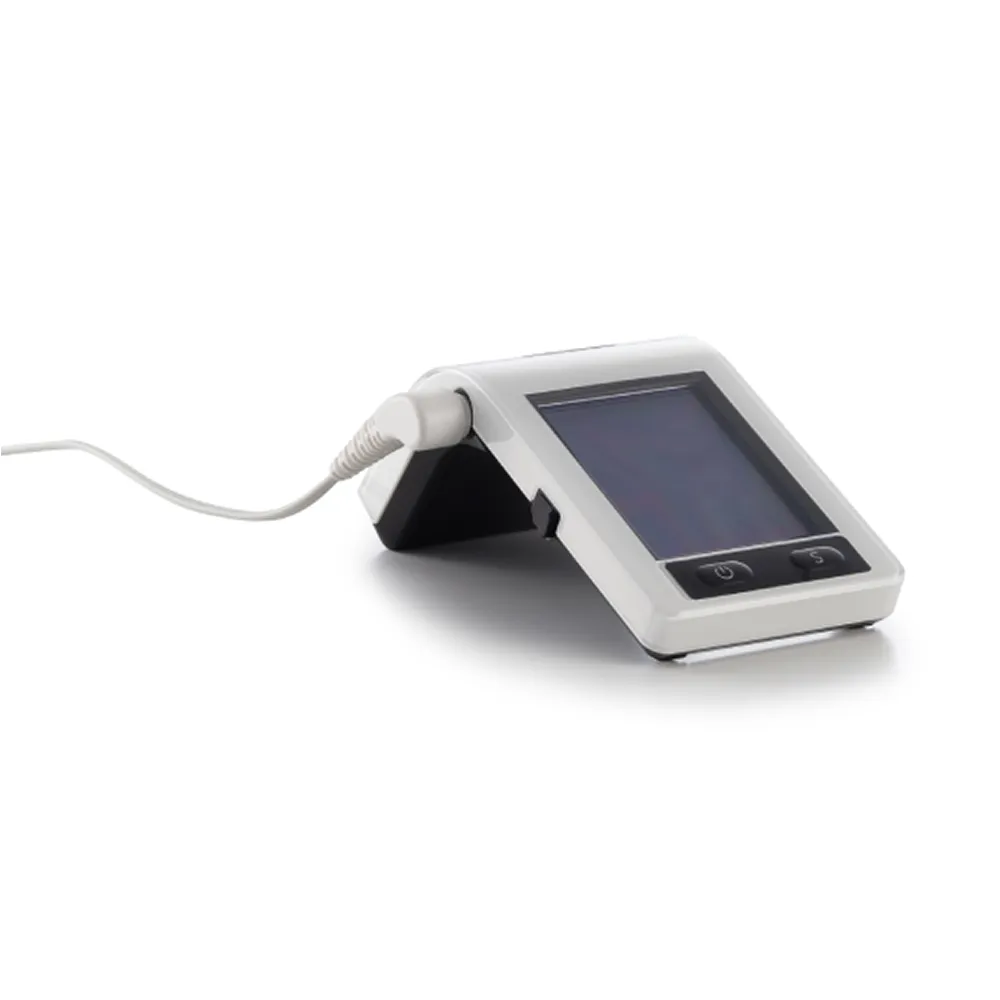

J Morita Root Zx Mini Apex Locator (RCM - 7)

Brochure:
Features: Compact Size: The Root Zx Mini is designed to be compact, allowing for easy handling and maneuverability during dental procedures. Its small size enhances comfort and convenience for dental professionals. Advanced Electronic Measurement Technology: The device utilizes advanced electronic measurement technology, which ensures highly accurate and reliable readings. This technology helps dental professionals precisely locate the apex of the root canal. Clear LCD Display: The Root Zx Mini features a clear and intuitive LCD screen that provides real-time measurements. The display allows dental professionals to monitor the progress of the procedure easily and view numerical values, visual indicators, and any audible signals. Multiple Measurement Modes: The device offers different measurement modes, including apex locator mode, which allows for accurate determination of the root canal apex. The availability of multiple modes adds versatility and adaptability to various clinical scenarios. Conductive Gel Compatibility: The Root Zx Mini is compatible with conductive gels or other suitable conductive mediums. These mediums ensure proper electrical contact between the device's electrode and the tooth, enabling accurate readings. Battery Powered: The device can be powered by batteries, ensuring portability and flexibility in different clinical settings. Battery power allows for convenient use without the need for a continuous external power source. Adjustable Settings: The Root Zx Mini allows for the adjustment of various settings, such as sound volume and measurement units, according to the preferences and requirements of the dental professional. Suitable for Primary and Permanent Teeth: The device is suitable for use in both primary and permanent teeth, making it versatile and applicable in a wide range of patient cases.
Key Specifications: Name: Root ZX Mini Model: RCM-7 Electric power supply: DC 4.5V Output: 0.2W Weight: Approx. 3.9 ounces (110 g) Battery: 1.5 VDC AAA x 3(Included) Size: W 60 mm x D 103 mm x H 57 mm
Packaging: 1 × Probe Cord 3 × File Holders 5 × Contrary Electrodes 1 × Canal-Length Tester 3 × DC 1.5 V AAA Size Battery
Direction to Use: Prepare the tooth: Begin by properly isolating the tooth with a rubber dam and ensuring a dry working field. Remove any temporary restorations or obstructions from the access cavity. Connect the device: Connect the Root Zx Mini to the power source or ensure that it has a sufficient battery charge. Attach the file holder to the device. Establish electrical contact: Apply a suitable conductive medium, such as a conductive gel, to the file holder's electrode and attach it to the tooth. Make sure the electrode is in contact with the tooth surface. Set the device: Turn on the Root Zx Mini and select the desired measurement mode (e.g., apex locator mode). Adjust the settings according to the manufacturer's instructions, such as sound volume and measurement units. Insert the file: Insert a pre-measured endodontic file or file tip into the root canal. Gently advance the file until it reaches resistance or the apex. Take note of the initial file length or reference point. Observe the display: Monitor the device's LCD screen, which displays real-time measurements. Pay attention to the numerical values, visual indicators, and any audible signals that indicate the file's position in the root canal. Determine the apex: As the file advances, observe the changes in readings on the device. Look for consistent measurements indicating that the file has reached the apex. Typically, the apex is considered reached when the device shows the file's length to be constant or slightly short of the reference point. Confirm the measurement: To confirm the apex location, withdraw the file slightly and recheck the measurements. Repeat this step to ensure accuracy and reliability. Note the working length: Once the apex is determined, note the working length by measuring the file's position relative to the reference point. Make sure to consider the desired apical stop position or any specific treatment objectives. Proceed with treatment: With the working length determined, proceed with the appropriate root canals treatment, such as cleaning, shaping, and obturation, following established endodontic protocols.
Additional Info: Country of origin: Japan Manufacturer: J-Morita
Warranty: Manufacturer/Importer warranty of 1 year as applicable for this product Service and Warranty ;are handled by the manufacturer/importer directly for this product Teethment will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Teethment and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Teethment may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
